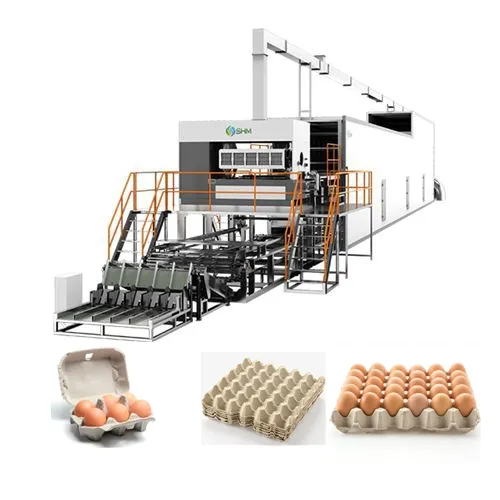

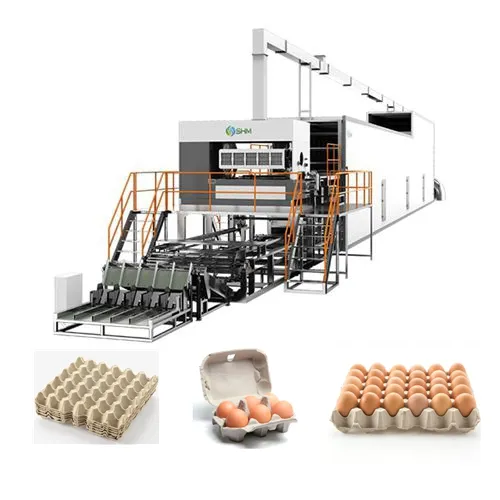

The Automatic egg tray production line 3000pcs/h is a fully integrated molded pulp system designed for continuous, high-efficiency production of paper egg trays using recycled paper.

This industrial-grade automatic egg tray Machine combines pulping, forming, drying, and stacking into one seamless process, delivering stable output and consistent product quality.

A complete egg tray production line is not a single machine, but a coordinated system including pulping, vacuum forming, drying, and packaging modules.

SHM paper pulp egg tray moulding machine model :

Production Capacity & Key Parameters

Capacity: 3000 pcs/hour

Forming Type: Rotary (4-side)

Raw Material: Waste paper (carton, newspaper, office paper)

Product Type: 30-cell egg trays (custom molds available)

Automation Level: Fully automatic

Drying Method: Multi-layer metal dryer (gas / diesel / LPG)

Operation Mode: 24/7 continuous production

Industrial machines in this range typically deliver 3000–5000 pcs/hour, ideal for medium-to-large scale operations.

Complete Production Process

1. Pulping System

Waste paper is processed into uniform pulp through hydraulic pulping, screening, and mixing.

Ensures fiber consistency and product strength

2. Forming System

Vacuum suction molds shape pulp into wet egg trays with precise structure and thickness control.

3. Drying System

Multi-layer drying line removes moisture efficiently Adjustable temperature zones for energy optimization

High-precision pallets

4. Stacking & Packing

Finished trays are automatically counted, stacked, and prepared for shipment

A standard egg tray line follows this pulping → forming → drying → stacking workflow for stable production

Key Advantages

Fully Automatic Operation

PLC control system

Minimal labor requirement

Automatic mold cleaning & fault protection

High Efficiency & Stable Output

Continuous rotary forming

Fast cycle time (up to 15 cycles/min)

Designed for 24/7 industrial production

Energy-Saving Drying System

Multi-layer metal dryer reduces energy consumption

Compatible with multiple fuel options

Eco-Friendly & Sustainable

Uses 100% recycled paper

Biodegradable final products

No secondary pollution during production

Pulp molded products are recyclable, biodegradable, and widely used as sustainable packaging alternatives.

Raw Materials & Fuel Options

Raw Materials:

Waste paper

Newspaper

Cardboard

Applications

This automatic egg tray machine is widely used for:

Poultry farms

Egg packaging factories

Agricultural product packaging

Fruit trays & cup holders

Industrial protective packaging

Why Choose SHM?

30+ years experience in Pulp molding machinery

50+ patents in fiber molding technology

CE & ISO certified manufacturing

Customized solutions for different markets

Full project support (layout, installation, training)

ROI & Business Value

Starting an egg tray production business is highly attractive because:

Raw materials are low-cost and widely available

Equipment supports scalable production

Demand from farms and packaging industries is stable

egg tray manufacturing is considered a profitable entry-level project in molded pulp packaging due to low raw material cost and broad market demand.

Factory Layout & Requirements (Typical)

Workshop area: 600–800㎡

Power supply: ~120-200 kW

Water consumption: Recycling system included

Labor: 3–5 operators

Looking for a reliable automatic egg tray machine supplier?

Tell us your requirements:

Target capacity (pcs/hour)

Raw material type

Fuel type for drying

Factory size

We will provide:

Customized solution

Layout drawing

Detailed quotation

ROI analysis

Contact SHM Team today to start your egg tray project
