Pulp molding Mold Maintenance Guide: Proven Methods to Extend Mold Life and Improve Product Quality

In molded pulp manufacturing, the mold is one of the most valuable production assets. Whether producing coffee cup lids, plates, bowls, industrial packaging trays, egg trays, or medical products, mold condition directly affects product appearance, dimensional accuracy, vacuum efficiency, cycle time, and overall production costs.

Many factories invest heavily in machinery but underestimate the importance of mold maintenance. In reality, poor mold care often leads to blocked vacuum holes, rough product surfaces, higher reject rates, longer forming times, and premature mold replacement.

A well-maintained mold can operate reliably for millions of cycles, while a neglected mold may experience significant performance degradation within a relatively short period.

This guide explains the most common causes of mold contamination, practical cleaning methods, inspection standards, and maintenance strategies that can significantly extend mold service life and improve production efficiency.

Why Do pulp molding Molds Become Blocked?

Many operators assume that mold blockage is caused only by pulp fibers. However, actual contamination usually comes from multiple sources.

Common deposits found on molded pulp tooling include:

The risk is even higher when processing:

Sugarcane bagasse

Bamboo pulp

Wheat straw pulp

Recycled OCC

Mixed agricultural fibers

These materials often contain higher levels of silica, calcium, lignin, and other minerals that gradually accumulate on mold surfaces and inside vacuum channels.

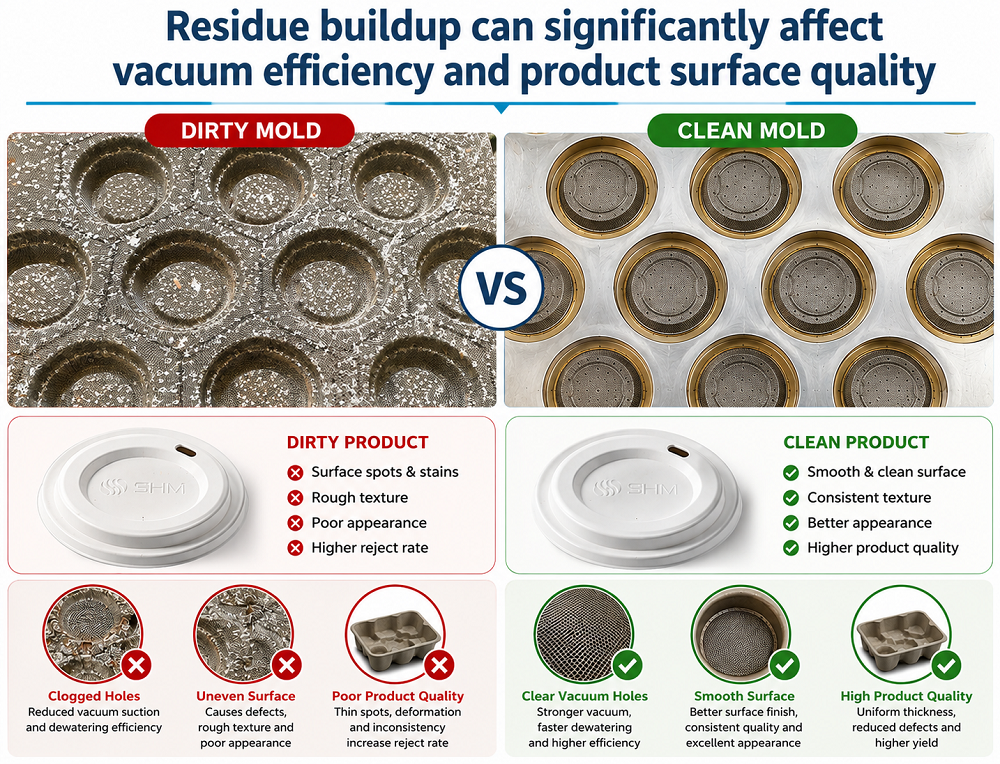

Over time, deposits begin covering the mold mesh and vacuum holes, reducing water extraction efficiency and affecting product quality.

How Mold Blockage Affects Production

Blocked molds impact production in several ways.

Reduced Vacuum Efficiency

Vacuum holes are responsible for removing water from the fiber mat during forming.

When deposits restrict airflow:

Water removal becomes slower

Vacuum pressure decreases

Forming cycles become longer

Even a partial blockage can reduce vacuum performance by 10–20%.

 Longer Production Cycles

A clean mold may complete forming in approximately 4 seconds.

As blockage increases, forming time may rise to:

5 seconds

5.5 seconds

6 seconds or more

This seemingly small increase can reduce daily output by 20–35%.

Poor Product Appearance

Mold contamination frequently causes:

Black spots

Surface stains

Rough texture

Uneven thickness

Fiber accumulation marks

For premium products such as coffee cup lids and food packaging, appearance defects can significantly increase rejection rates.

Increased Energy Consumption

Reduced dewatering efficiency means more moisture remains in the product entering the hot press or drying section.

Will lead to:

Drying time increases

Energy consumption rises

Production costs increase

How to Identify a Blocked Mold

Experienced operators do not wait until products become defective.

Instead, they monitor several indicators.

Vacuum Pressure Changes

A properly operating mold often maintains vacuum levels between:

-45 kPa and -60 kPa

A decrease of more than 15% may indicate partial blockage.

Product Weight Increase

When molds cannot remove water efficiently, more fibers remain attached to the surface.

Example:

Normal cup lid weight: 4.5 g

Blocked mold weight: 5.0–5.3 g

An unexpected increase in product weight often signals reduced drainage efficiency.

Longer Forming Time

If production settings remain unchanged but cycle time increases, mold contamination should be investigated immediately.

Surface Defects

Visual inspection remains one of the most effective methods.

Include:

Rough surfaces

Dark spots

Surface contamination

Poor logo definition

Inconsistent product texture

Daily Mold Cleaning Procedure

Routine cleaning is the most cost-effective way to prevent serious contamination.

Daily cleaning should be performed after each production shift.

Step 1 – Allow the Mold to Cool Naturally

This is one of the most important maintenance practices.

Never spray cold water onto a hot mold immediately after production.

Rapid temperature changes can create thermal stress that may cause:

• Mold deformation

• Mesh loosening

• Micro-cracks

• Reduced dimensional accuracy

Always allow the mold to cool naturally before cleaning.

As a general guideline:

Mold surface temperature should drop below 40°C–50°C

Warm water should be used instead of cold water

This simple practice can significantly extend mold life.

Step 2 – Compressed Air Cleaning

Use clean compressed air to remove:

Loose fibers

Dust

Surface debris

Pay special attention to vacuum holes and mesh surfaces.

Step 3 – Warm Water Rinse

After cooling, rinse the mold using warm water.

Recommended temperature:

30–50°C

Warm water helps dissolve residues while minimizing thermal shock.

Avoid:

Ice water

Extremely cold water

Sudden temperature changes

Step 4 – Soft Brush Cleaning

Use only:

Soft nylon brushes

Soft plastic brushes

to remove deposits from the mesh surface.

Never use:

Steel brushes

Metal scrapers

Sharp tools

These tools can damage:

Mold mesh

Vacuum holes

Surface finish

Even minor scratches may affect product appearance and vacuum performance.

Weekly Deep Cleaning

Daily cleaning removes loose contamination, but deeper cleaning is required to eliminate mineral deposits.

A weekly cleaning schedule is recommended.

Mild Acid Cleaning

Suitable cleaning solutions include:

2–5% citric acid solution

Commercial descaling agents designed for aluminum molds

Soak for:

30–60 minutes

This helps dissolve:

Calcium deposits

Mineral scale

Stubborn residues

Important Safety Notice

Never use strong acids such as:

Hydrochloric acid

Sulfuric acid

These chemicals may damage:

Aluminum molds

Brass components

Vacuum channels

Monthly Preventive Maintenance Inspection

A comprehensive inspection should be performed monthly.

Check the following items:

Mold Surface

Inspect for:

Surface scratches

Corrosion

Fiber buildup

Physical damage

Vacuum Holes

Inspect for:

Partial blockage

Hole enlargement

Mechanical damage

Mesh Condition

Check for:

Broken mesh

Loose mesh

Deformation

Damaged mesh should be repaired immediately.

Alignment Components

Inspect:

Guide pins

Positioning blocks

Fasteners

Poor alignment often causes burrs and dimensional inconsistencies.

Common Maintenance Mistakes

Many molds are damaged not by production, but by improper cleaning.

Mistake 1: Cleaning Hot Molds with Cold Water

This is one of the most common causes of premature mold damage.

Sudden cooling can cause:

Thermal stress

Warping

Mesh separation

Always cool first.

Mistake 2: Using Metal Brushes

Metal brushes may seem effective but can permanently damage mold surfaces.

Always use soft brushes.

Mistake 3: Excessive Water Pressure

Very high-pressure washing can deform mesh structures.

Recommended cleaning pressure:

3–5 bar

Avoid pressures above 10 bar.

Mistake 4: Ignoring Small Deposits

Small deposits eventually become large blockages.

Preventive cleaning is always less expensive than mold repair.

Expected Mold Service Life

Actual mold life depends on:

Mold material

Fiber type

Cleaning practices

Production volume

SHM Maintenance Recommendations

Based on SHM's experience with cup lid molds, tableware molds, industrial packaging molds, and egg tray molds, we recommend the following schedule:

Daily

  Natural cooling before cleaning

  Compressed air cleaning

  Warm water rinsing

  Soft brush cleaning

Weekly

  Mild descaling treatment

  Vacuum hole inspection

  Mesh inspection

Monthly

  Full preventive maintenance inspection

  Alignment verification

  Wear assessment

  Vacuum performance testing

By following these procedures, manufacturers can typically achieve:

30–50% longer mold life

10–20% higher vacuum efficiency

20–40% lower defect rates

Reduced downtime and maintenance costs

Mold maintenance is not simply a cleaning task—it is a critical production management strategy.

Allowing molds to cool naturally before cleaning, using warm water instead of cold water, cleaning with soft brushes, and performing regular inspections can dramatically improve mold longevity and product quality.

For molded pulp manufacturers producing coffee cup lids, tableware, industrial packaging, and other fiber products, a structured preventive maintenance program is one of the most effective ways to maximize production efficiency and protect tooling investments.

At SHM, we not only manufacture molded pulp equipment and tooling but also provide practical maintenance guidance to help customers achieve long-term, stable production performance.

Frequently Asked Questions (FAQ)

How often should pulp molding molds be cleaned?

Quick Answer:  The exact frequency depends on your production environment.

When it comes to mold cleaning, some machines are equipped with automatic cleaning devices that wash the molds on a set timer, or automatically flush them after every single molding cycle. Other systems rely on manual cleaning, which is performed by operators based on the actual condition of the molds.

Factors that influence cleaning frequency: The type of raw materials used (e.g., recycled paper requires more frequent cleaning due to higher debris), the use of chemical additives (like waterproofing or coloring agents), and your specific production volume.

Why it matters: Regular cleaning prevents pulp buildup, ensures consistent product quality, and maintains optimal vacuum efficiency.

What causes vacuum holes to become blocked?

Vacuum hole blockage is a common maintenance issue usually caused by a combination of the following factors:

Pulp Residu & Fine Fibers: Tiny paper fibers can bypass the mesh screen over time and accumulate inside the vacuum holes.

Chemical Additives: Sizing agents, retention aids, and dyes used in the pulp mix can leave a sticky residue that hardens and plugs the holes.

Water Scaling & Mineral Deposits: If your production line uses hard water, mineral buildup (like calcium) can gradually constrict and block the vacuum passages.

Damaged Wire Mesh: A torn or poorly fitted forming mesh allows larger pulp clumps to enter and instantly clog the vacuum system.

How do I prevent corrosion on aluminum molds?

Aluminum is highly efficient but susceptible to chemical attack and oxidation.

To protect your aluminum molds, implement the following best practices:

Control Water pH: Maintain the pH level of your white water system between 6.5 and 7.5.

Water that is too acidic or too alkaline will rapidly corrode aluminum.

Use Protective Coatings: Apply a surface treatment such as Teflon (PTFE) coating or anodization.

This creates a durable barrier against moisture and corrosive chemicals.

Thorough Drying before Storage:

Never store molds while they are wet. After a production run, clean the molds and dry them completely using compressed air or a drying oven.

Apply Anti-Rust Oil:

If storing the molds for an extended period, spray a light layer of industrial anti-rust oil or protective wax on the surfaces.
